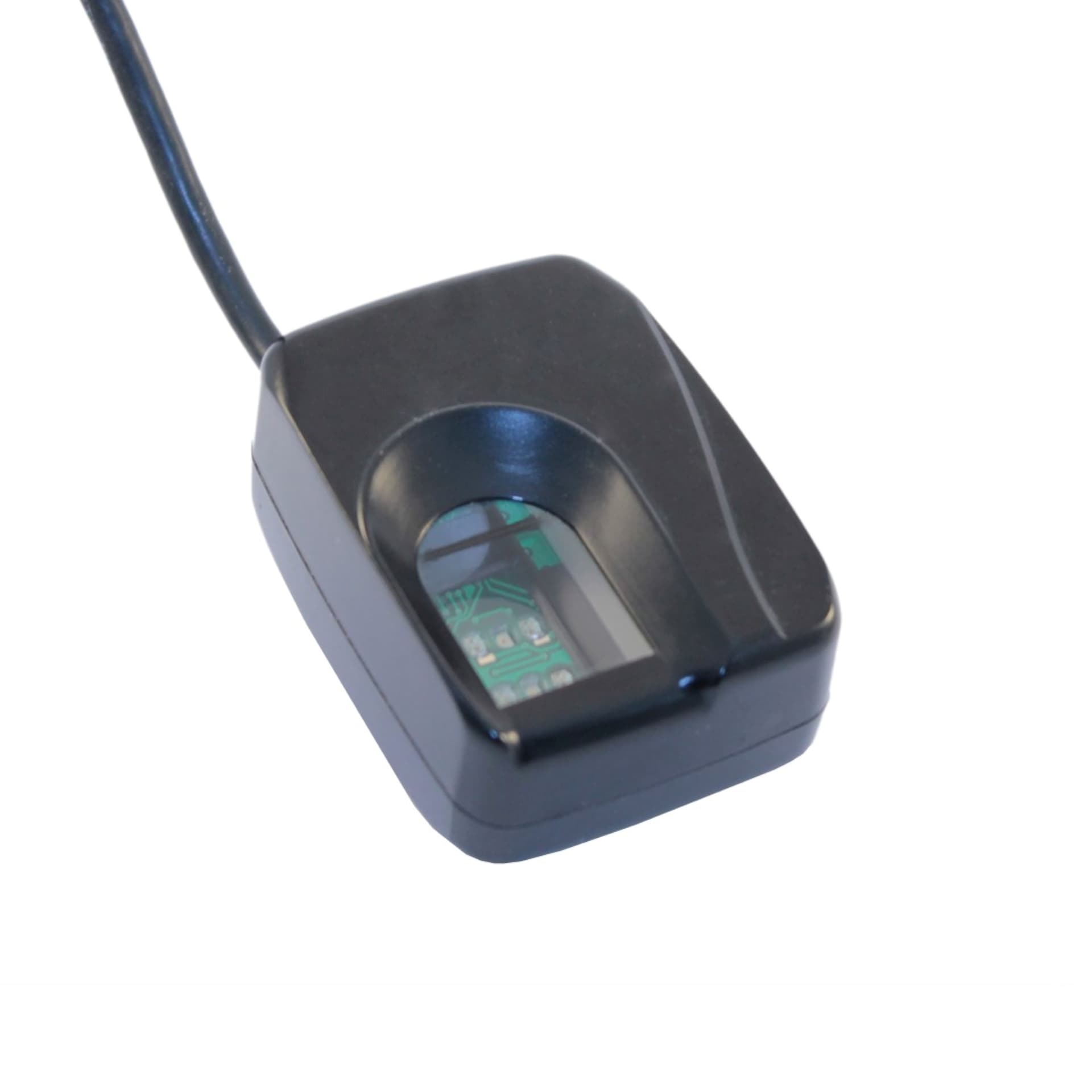

Finger Print Scanner (FS88H)
The Futronic FS88H is a high-quality, optical fingerprint scanner designed for secure identity verification applications.
The Futronic FS88H is a high-quality, optical fingerprint scanner designed for secure identity verification applications.
Specifications: | |
|---|---|
Fingerprint Scanning Window Size | 16.26*24.38mm |
Image Resolution | 320*480 pixels 500DPI, 8 bit grey level |
Raw Fingerprint Image File Size | 150K byte |
Live Finger Detection (LFD) | Yes |
USB | Yes (plug and play device) |
Data Storage | 16K Byte memory |
Light Source | Infrared LED |
Supply Voltage | DC 4.5-5.5V via USB port |
ESD Contact | 8KV no permanent damage |
ESD Air Discharge | 16KV no permanent damage |
Dimensions | 66*66*29mm |
Weight | 150g |
Operational Temperature | -10 to +55C |
